Diamant 2000 series - Electric ball valves IP 65 All-in-One
PN 10 - 30 (64 stainless steel), Ø 15 - 32, 11 Nm
5 years warranty on the motor
Description

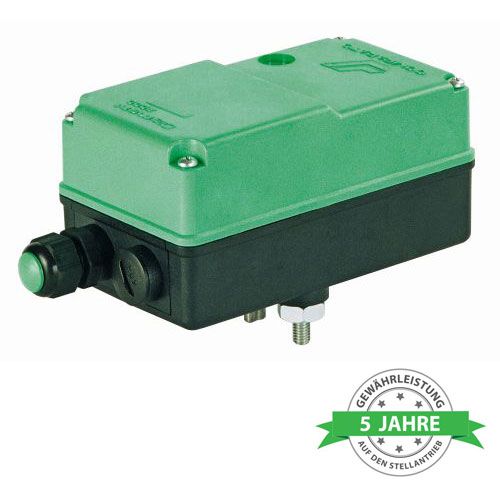

Actuator:
- All-in-one motor for 2-point control (2P) - on / off & 3-point control (3P) - control
- Low noise operation
- All external components made of stainless steel
- CE certified
- Maintenance-free
- For heating, solar and house systems

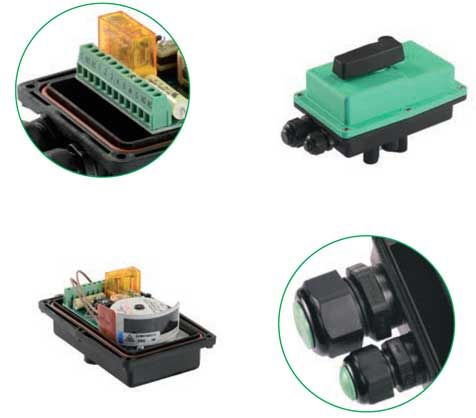

- Optional: manual override, 1 or 2 micro-switches, anti-condensation heating, 4 seconds | 12 seconds | 106 seconds | 320 seconds - operating time
Valve body:
- Brass valve body PN16, stainless steel AISI 316 PN 64, plastic PN 16 (up to DN 40)
- Full passage
- PTFE seals

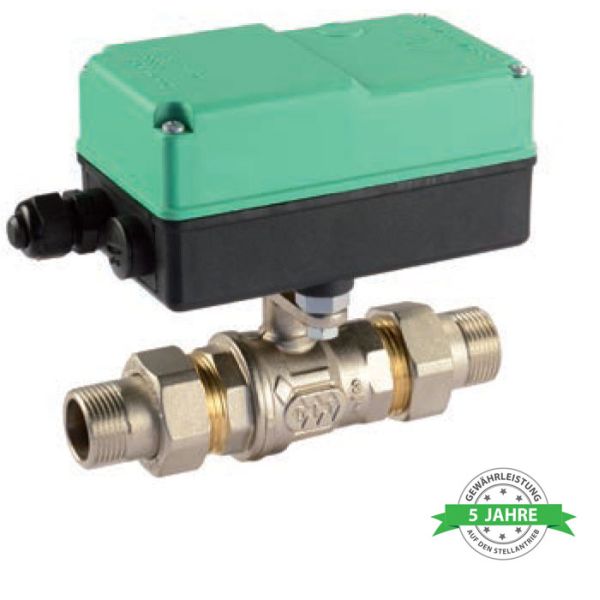

- 2-way, 3-way, bypass & ball valves with spacers and manual override (decoupled from the actuator)
Specifications
Motor type
|
bidirectional, All-In-One for 2-point control (2P) - on/off & 3-point control (3P) - control
|
Voltage
|
24V 50/60Hz | 230V 50/60Hz | 110V 50/60Hz
|
Motor material
|
polyamide / 50% glass fiber - steam tested
|
Rotation
|
90 ° | 180 °
|
Operating time / torque
|
35 seconds / 11Nm | 4 seconds / 8 Nm (optional) 12 seconds / 11 Nm (optional) | 106 seconds / 11 Nm (optional) 320 seconds / 8 Nm (optional) other operating times on request |
Ambient temperature range
|
-10°C - +50°C
|
Protection class
|
IP 65
|
Ball valve connection
|
screw connection
|
Ball valve types
|

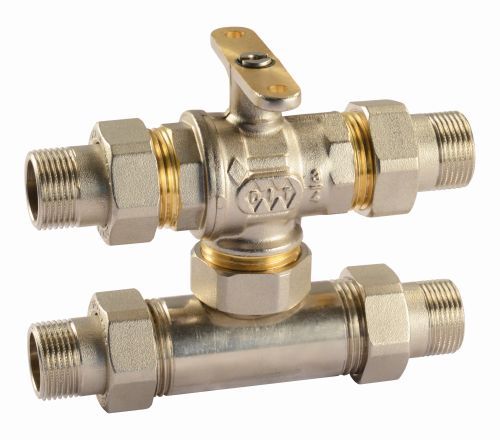

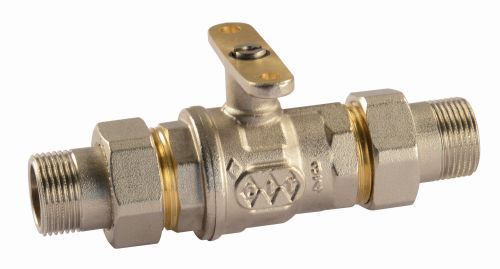

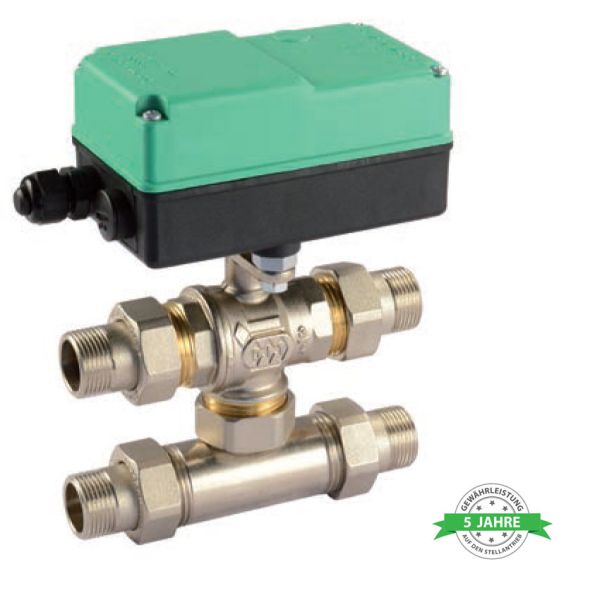

2-way | 3-way | bypass | ball valves with spacers and manual override (decoupled from the actuator)
|
Material
|
brass valve body PN16 | stainless steel AISI 316 PN 64 | plastic PN 16 (up to Ø 40)
|
Connections
|
G 1/4" (only with spacer) | G 1/2" | G 3/8"| G 3/4" | G 1"| G 1 1/4" (only with spacer) | G 1 1/2" (only in plastic with spacer)
|
Orifice diameter [mm]
|
10.0 | 15.0 | 20.0 | 25.0 to 32.0 (plastic only) | 40.0 (plastic only) | 50.0 (plastic only) all with full passage |
Operating pressure range
|
0 - 16 bar | 0 - 64 bar (stainless steel)
|
Seal material
|
PTFE (both sides)
|
Fluid temperature range
|
-10°C - +100°C | with spacer, for example for cooling systems with glycol
|
